Fencing Partner
YISHUO®
Fencing Partner
YISHUO®
Height : 1200-3500 mm
Width : 2000-3100 mm
Wire Diameter : 3.2 mm (10 gauge), 4.0 mm (8 gauge)
Mesh Opening : 12.7 x 76.2 mm (0.5" x 3")
Clamp : Metal clamp/ Tension bar covered.
Post :
(i) Square post (60 x60 x2.0/2.5/3.0 mm, 80 x80 x 2.0/2.5/3.0 mm).
(ii) Rectangular post (40 x60 x 2.0/2.5/3.0 mm, 40 x80 x 2.0/2.5/3.0 mm, 60 x80 x 2.0/2.5/3.0mm, 80 x100 x2.0/2.5/3.0 mm).
Post Cap : Metal cap / Anti-UV plastic cap.
Its Small mesh opening offers no place for climbing. Robust structure Panel wires are firmly welded at every intersection and provide a solid and robust structure. Anti-cut Solid welding joints, small mesh opening, together with thick wire diameter make the mesh hard to be cut by hand or tools. Excellent surface treatment Galvanized and powder coating treatments offers excellent rust, corrosion and weather resistance performances. High security It can be cooperated with barbed wires and razor wires to offer higher security.

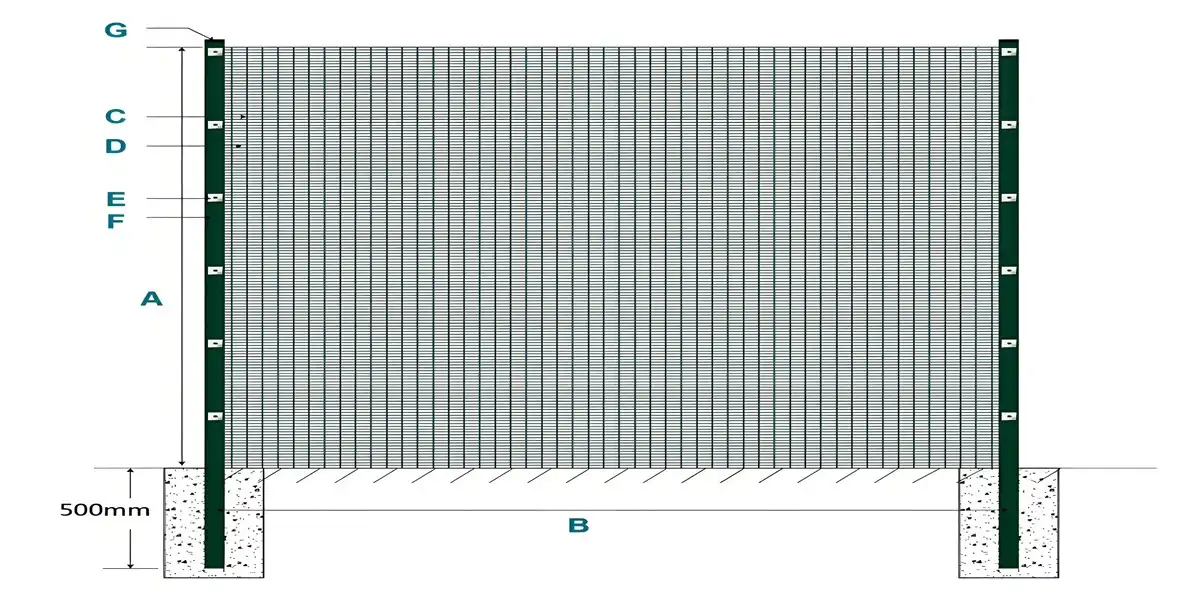

(A) Height : 1200-3500 mm
(B) Width : 2000-3100 mm
(C) Wire Diameter : 3.2 mm (10 gauge), 4.0 mm (8 gauge)
(D) Mesh Opening : 12.7 x 76.2 mm (0.5" x 3")
(E) Clamp : Metal clamp/tension bar covered
(F) Post : Square post (60 x60 x2.0/2.5/3.0 mm, 80 x80 x 2.0/2.5/3.0 mm)
Rectangular post (40 x60 x 2.0/2.5/3.0 mm, 40 x80 x 2.0/2.5/3.0 mm, 60 x80 x 2.0/2.5/3.0mm, 80 x100 x2.0/2.5/3.0 mm)
(G) Post Cap : Metal cap /anti-UV plastic cap
Materials of Wire Mesh Panel : Q235 steel
Materials of Post : Q235 steel
Materials of Bolts : Stainless Steel or Low Carbon Steel

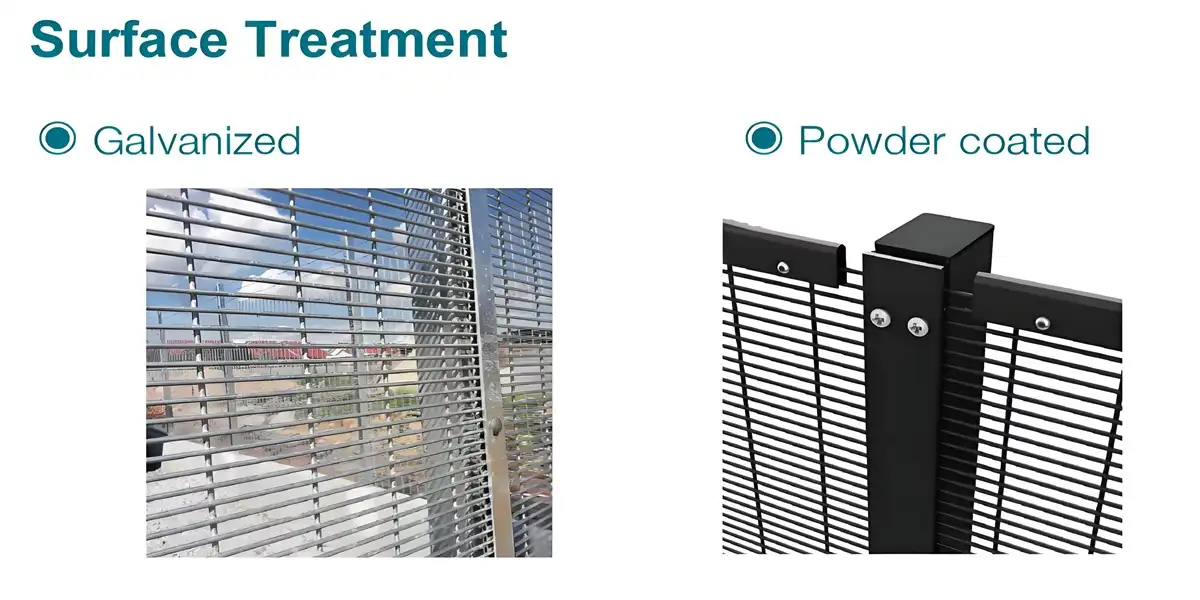

Surface Treatment : Hot Dipped Galvanized, Powder Coated, PVC Coated.
Color : All RAL Color are available
Process of Manufacturing : Materials---Iron wire---Wire cutting---Welded---Galvanized---Powder coated or other finish.
