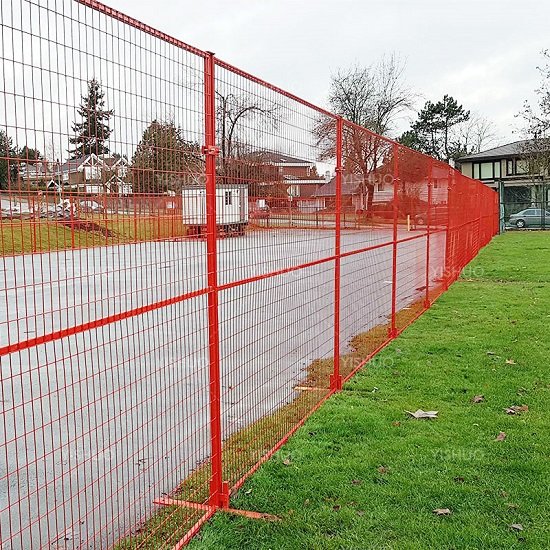

Canada Temporary Fence provides:-

I. Stable Structure
- 360° full welding by hand and hot dipped galvanized surface treatment make it durable and anti-corrosion.
II. Easy Installation

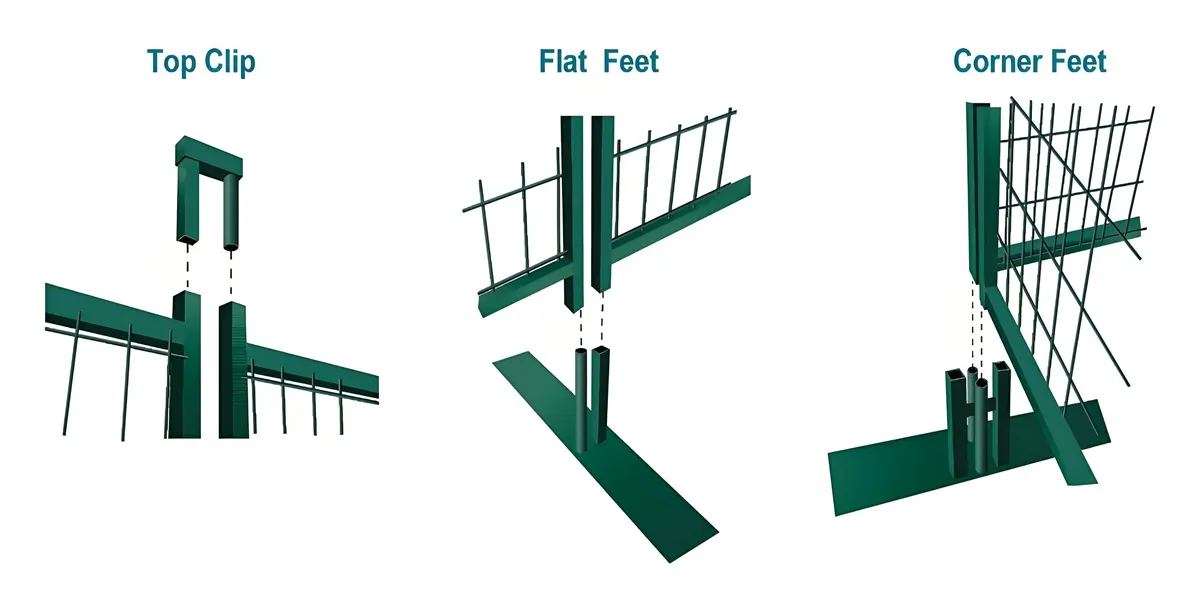

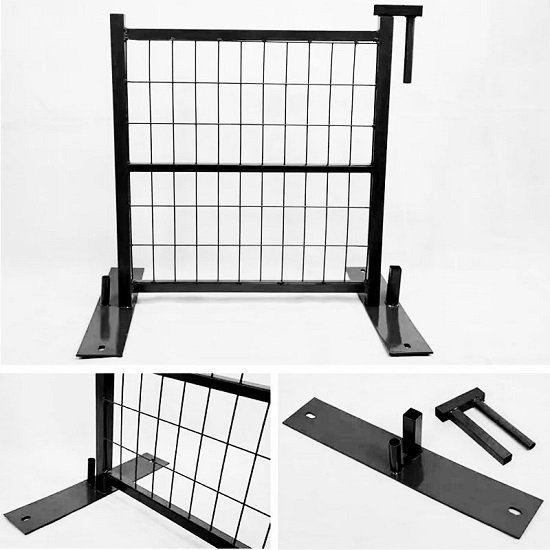

- Light weight and prede-signed plug-in junction for quick access anywhere on site.
III. Transparent Vision
- Various size of welded mesh opening are visible without any sight blocks.
IV. Versatile
- Removable panels with flexible isolation angle for any site needing security or privacy.

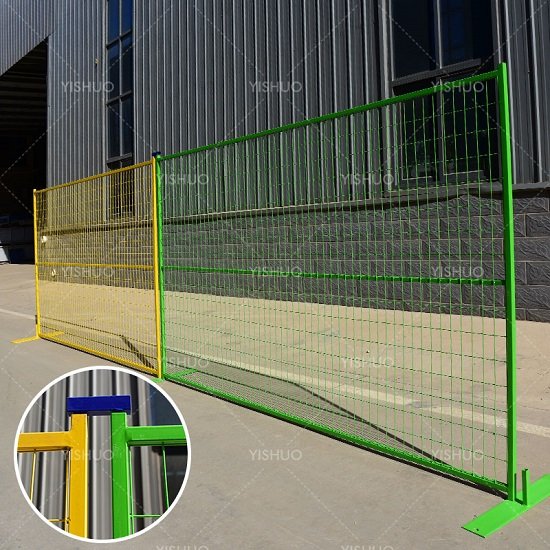

(I). 6' * 8' CA temp fencing
Dimensions (H × L) : 6' × 8'.
Frame O.D.: 30 x 30, 40 × 40 mm optional.
Frame TH : 2.0 - 2.5 mm.
Middle horizontal pipe : 25 × 25 × 2 mm.
Wire diameter : 4.0, 6.0 mm optional.
Mesh opening : 50 x 100, 50 x 150, 75 x 150 mm optional.
Finish :
- Electric galvanized before powder coated.
- Hot dipped galvanized after welding.

II. 6' * 10' CA temp fencing
Dimensions (H × L) : 6' × 10'.
Frame O.D.: 30 × 30, 40 × 40 mm optional.
Frame Thickness : 2.0 - 2.5 mm.
Middle horizontal pipe : 25 × 25 × 2 mm.
Wire diameter : 4.0, 6.0 mm optional.
Mesh opening : 50 x 100, 50 x 150, 75 x 150 mm optional.
Finish :
- Electric galvanized before powder coated.
- Hot dipped galvanized after welding.

III. Alternative Specifications
Length : 8', 9.5', 10' optional.
Height : 6', 6.2', 8', 8.2' optional.
Frame O.D.: 30 x 30, 40 × 40 mm optional.
Frame Thickness : 2.0 - 2.5 mm.
Middle horizontal pipe : 25 × 25 × 2 mm.
Wire diameter : 4.0, 6.0 mm optional.
Mesh opening : 50 x 100, 50 x 150, 75 × 150 mm optional.
Finish :
- Electric galvanized before powder coated.
- Hot dipped galvanized after welding.
