Fencing Partner
YISHUO®
Fencing Partner
YISHUO®
Mesh opening : 25mm 40mm 50mm 57mm 60mm 65mm 70mm 75mm 100mm
Wire Diameter : 18Ga 18Ga 16Ga 16Ga 16Ga 16Ga 16Ga 14Ga 14Ga
Length per roll : 10m, 20m, 30m
Height : Customized
Round post : 32 mm, 42 mm, 48 mm, 60 mm, 76 mm, 89 mm; thickness: 0.8-5.0
Tension Bar :
20mm*4mm, 20mm*5mm
Post :
48mm, 60mm, 75mm, 89mm
Clamp : Metal clamp
Post Cap : Metal rain cap / Anti-UV PP cap
Intermediate post
Intermediate post cap
Fence tie

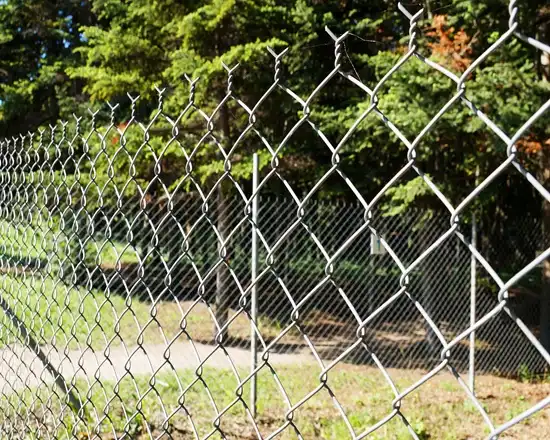

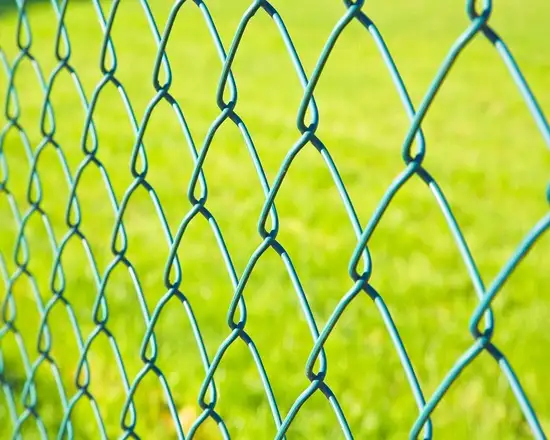

Chain link fence, also known as cyclone fence, hurricane fence or diamond mesh SHUE fence, is a type of woven fence usually made of galvanized or PVC coated steel wire.
The wires are woven together to form beautiful diamond patterns. It offers a cost effective solution for residential and commercial applications.
Typically, the shorter heights are commonly selected for residential uses while the taller heights are most often for commercial uses to provide more security.
Besides, it is a great option for road, railway, airport fencing, equipment and facilities protection, pet and small animal raising as well as zoo fencing.
Feature :-
Chain-link fence is a versatile and widely used fencing option. Its features include:
1. Durability
- Made of galvanized or coated steel, chain-link fences resist corrosion, rust, and wear, making them long-lasting.
2. Affordability
- Chain-link fencing is cost-effective compared to other types of fencing, such as wood or wrought iron.
3. Low Maintenance
- Requires minimal upkeep, as it does not need regular painting or staining. Occasional cleaning and inspection are sufficient.
4. Visibility
- Provides clear visibility, making it suitable for areas where an unobstructed view is essential, like sports fields or security zones.
5. Variety of Heights
- Available in various heights to suit different needs, from short fences for residential use to taller ones for high-security areas.
6. Customization :- Can be customized with:
- Vinyl or PVC coatings for aesthetics and added protection.
- Privacy slats or fabric inserts for increased privacy.
- Barbed wire or razor wire for enhanced security.
7. Ease of Installation
- Relatively quick and easy to install compared to other fencing options, reducing labor costs and time.
8. Flexibility
- Can be used for various applications, including residential properties, industrial sites, parks, and temporary fencing.
9. Portability
- Often used for temporary purposes due to its lightweight design and easy dismantling and reassembly.
10. Environmental Adaptability
- Performs well in different climates and weather conditions, from hot and humid areas to cold and snowy regions.

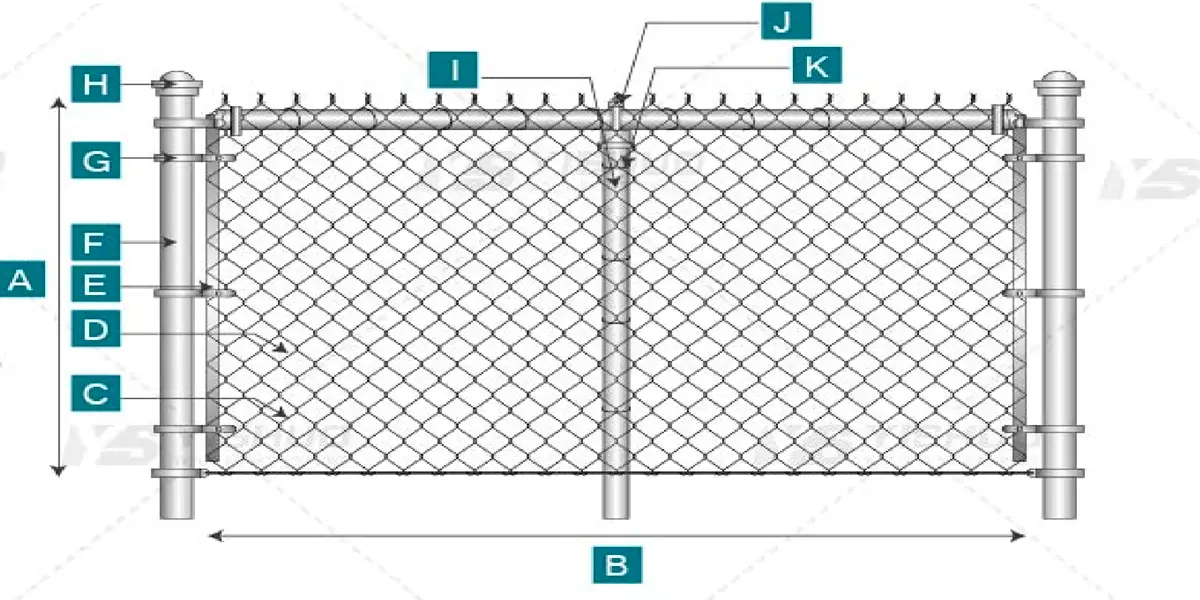

Mesh opening : 25mm 40mm 50mm 57mm 60mm 65mm 70mm 75mm 100mm
Wire Diameter : 18Ga 18Ga 16Ga 16Ga 16Ga 16Ga 16Ga 14Ga 14Ga
Length per roll : 10m, 20m, 30m
Height : Customized
Round post : 32 mm, 42 mm, 48 mm, 60 mm, 76 mm, 89 mm; thickness: 0.8-5.0
E
Tension Bar :
20mm*4mm, 20mm*5mm
F
Post :
48mm, 60mm, 75mm, 89mm
G
Clamp : metal clamp
H
Post Cap : Metal rain cap / Anti-UV PP cap
I
Intermediate post
J
Intermediate post cap
K
Fence tie
1. Material Specifications
Wire Material : Typically made from :
Galvanized Steel : For corrosion resistance.
Stainless Steel : For higher durability and rust resistance.
PVC-Coated Steel : For additional protection and aesthetic appeal.
Aluminum: For lightweight applications.
Coating Types :
Hot-Dipped Galvanized : Offers a thick zinc coating for maximum rust prevention.
Electro-Galvanized : Provides a thinner zinc coating for cost-effective corrosion protection.
Polymer Coating (PVC or Vinyl) : Enhances weather resistance and improves appearance.
2. Mesh Design
Wire Diameter : Common diameters range from 1.2 mm to 5 mm, depending on application.
Mesh Size : The opening size between wires, usually 20 mm to 100 mm, affects security and visibility.
Weaving Pattern :
Diamond-shaped mesh is standard.
Twisted or knuckled ends for additional security.
3. Fence Framework
Posts and Rails :
Made of galvanized or powder-coated steel.
Sizes vary based on fence height and load-bearing requirements.
Fittings :
Tension bands, brackets, and ties are made of rust-resistant metals or polymers.
4. Dimensions
Height : Common heights range from 1 m to 6 m, customizable to requirements.
Length/Roll Size : Typically available in rolls of 10 m to 25 m.
5. Standards and Certifications
Adherence to standards ensures quality and reliability :
ASTM Standards (e.g., ASTM A392) : For wire specifications and coatings.
BS EN 10223-6 : European standards for fencing wire and meshes.
ISO 1461 : Galvanized coatings on steel structures.
6. Strength and Tensile Properties
Tensile Strength : Wire strength typically ranges from 400 MPa to 600 MPa.
Breaking Load : Varies by wire thickness but designed to withstand heavy impacts.
7. Corrosion Resistance
Designed to resist harsh weather conditions:
Salt spray tests for coastal areas.
UV resistance for polymer-coated wires.
8. Applications and Customizations
Customization : Can include barbed or razor wire attachments for added security.
Gates : Integrated gates with locking mechanisms for specific applications.
9. Installation Compatibility
Foundations : Can be mounted on concrete, soil, or modular bases.
Accessories : Compatible with privacy slats, windbreaks, and reinforcement add-ons.
If you have specific requirements, I can help you define the exact specifications or suggest the best options for your needs!
